Pipeline Map


Date Requested: Sep 02 2010 6:11 PM

Northern Facilities

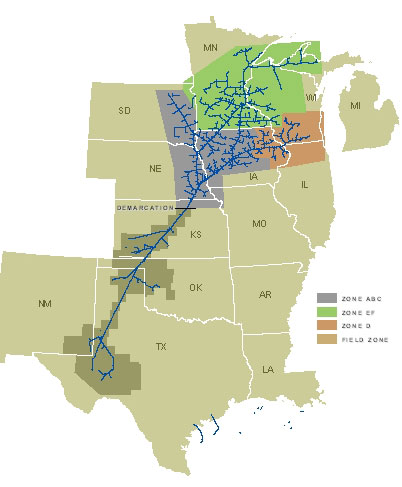

Northern's system has two distinct rate areas. Market Area is the portion of Northern's system north of Clifton, Kansas (demarcation point). Northern delivers supply to geographically dispersed markets located in the upper Midwest. Field Area is the portion of Northern's system south of Clifton, Kansas. It consists of a vast network of transmission facilities that connect to gathering systems in major production basins. Northern connects to virtually all major interstate and intrastate pipelines in the field area.

Date Operational 1930
Miles of Pipe 15,000
Compression 46 Stations/623,128 hp
Total 2009 Deliveries 1.078 Tcf
Market Area Design Capacity 5.5 Bcf/d
Field Area Design Capacity 2.0 Bcf/d
Pipe Size 2 to 36 inches in diameter
Number of Receipt and Delivery Points Available for Transport 2,272
Number of Shippers 326
Maximum Operating Pressure 50 to 1,600 psig
Underground Storage 69 Bcf (Two Aquifers and One Volumetric Depletion)
LNG Storage 4 Bcf (Two Cryogenic Facilities)
